How to Configure Apache Web Server Load and Page Statistics

Share It!

We’re in this article together with another content within the Apache HTTP web server that may produce a Process Managers existence much simpler to address heap associated with Apache web server using mod_status module.

What’s mod_status?
The Status module permits the server supervisor to find how nicely their own server is performing. A new HTML web page will be presented that provides the latest server figures in the easily readable form. mod_status is usually an Apache component which helps you to keep an eye on web server weight as well as latest httpd connections through an HTML user interface which is often available via a browser.

The details given are:

  • Total number of worker serving requests
  • Last amount concerning bytes in addition to numbers server.
  • CPU usage
  • Server Load
  • Server Uptime
  • Total Traffic
  • Total number of idle workers
  • The current hosts and requests being processed.
  • Testing Setting

    Operating System – CentOS
    WebServer – Apache
    IP Address – 192.168.10.30
    DocumentRoot– /var/www/html
    Apache Configuration file – /etc/httpd/conf/httpd.conf


    How to Enable mod_status in Apache
    By default in Apache installation mod_status module is enabled, but make sure it is enabled in Apache configuration file at. Follow below steps to check module in enabled or not

    # vi /etc/httpd/conf/httpd.conf


    Search for the word “mod_status” in Apache Configuration File.

    #LoadModule status_module modules/mod_status.so


    If you see ‘#‘ character at the start regarding “LoadModule”, which means mod_status is disabled. Remove the ‘#‘ to enable mod_status.

    LoadModule status_module modules/mod_status.so


    Configure mod_status

    To configure mod_status we need to search for the word “server-status” in Apache Configuration File

    # Allow server status reports generated by mod_status,
    # with the URL of http://servername/server-status
    # Change the ".example.com" to match your domain to enable.
    #
    # <Location /server-status>
    #    SetHandler server-status
    #    Order deny,allow
    #    Deny from all
    #    Allow from .example.com
    # </Location>


    Remove the ‘#‘ to configure mod_status.

    # Allow server status reports generated by mod_status,
    # with the URL of http://servername/server-status
    # Change the ".example.com" to match your domain to enable.
    #
    <Location /server-status>
       SetHandler server-status
       Order allow,deny
       Deny from all
       Allow from 192.168.10.
    </Location>


    Note: The above mentined configuration will be the default configuration with regard to default Apache web site (single website).

    To add more information to the statistics page like, CPU usage, request per second, total traffic, etc so search one more word ‘ExtendedStatus”in Apache Configuration File and uncomment it.

    # ExtendedStatus controls whether Apache will generate "full" status
    # information (ExtendedStatus On) or just basic information (ExtendedStatus
    # Off) when the "server-status" handler is called. The default is Off.
    #
    ExtendedStatus On


    Configure server-status of domain
    If you have enabled status reports only for any particular domain from your browser add this code to your Apache configuration file.

    <Location /server-status>
        SetHandler server-status
        Require host techoism.com
    </Location>


    Restart Apache
    Before restarting the Apache Server make sure all the apache configuration is correct using following command:

    # httpd -t
    Syntax OK


    Once, you get syntax is OK, you can restart the httpd service.

    service httpd restart
    Stopping httpd:                                          [  OK  ]
    Starting httpd:                                          [  OK  ]

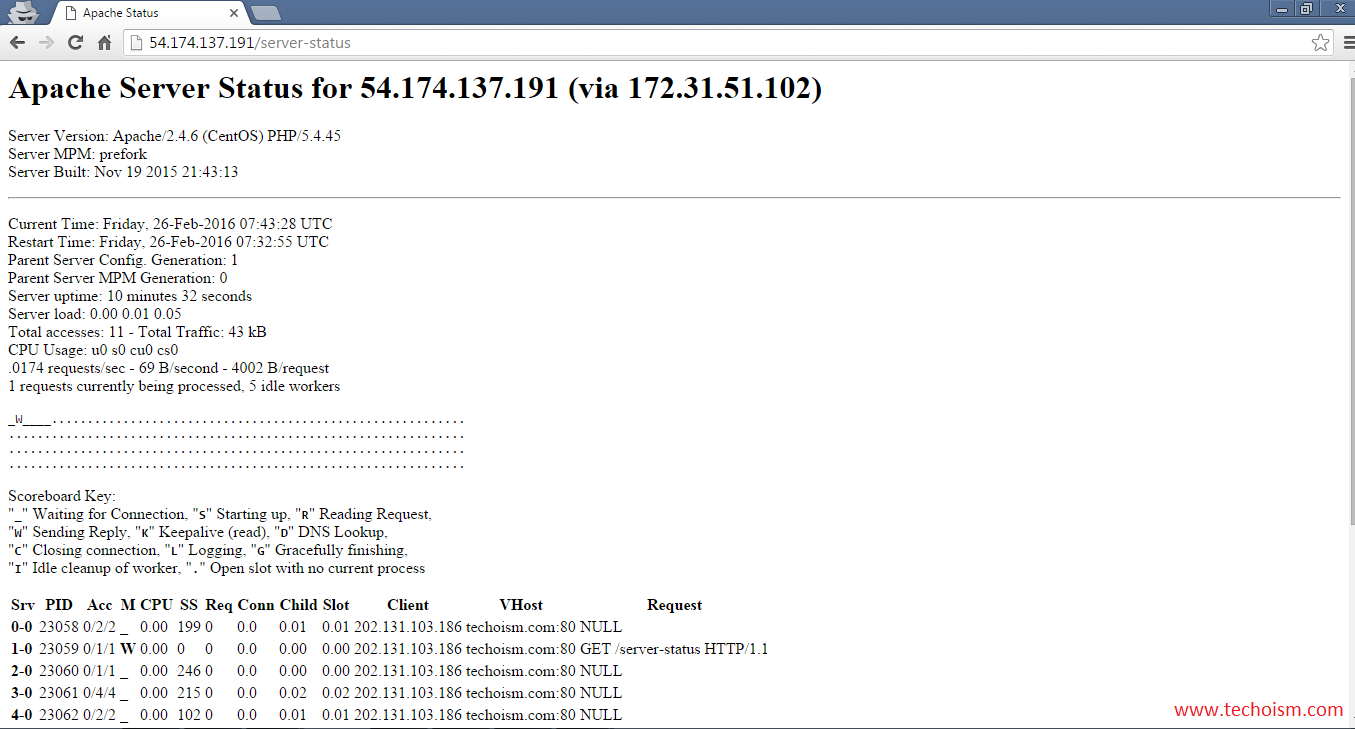

    Check server-status via browser:

    http://server-ip/server-status
    OR
    http://server-hostname/server-status

    server-status
