How to connect Chef Server with Nodes on Linux

Share It!

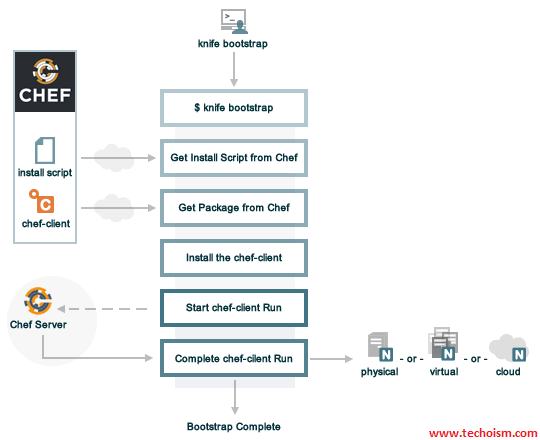

The main part of chef that allows you to connect a node to a chef server is called chef-client. A node is any physical, virtual, or cloud machine that is configured to be maintained by a chef-client. A bootstrap is a process that installs the chef-client on a target system so that it can run as a chef-client and communicate with a Chef server. There are two ways to do this:

  • Use the knife bootstrap subcommand to bootstrap a node using the omnibus installer
  • Use an unattended install to bootstrap a node from itself, without using SSH

    See Also:
    1. Search chef Install and Configure a Chef Workstation on CentOS/RHEL 7/6
    2. How to Install the Chef Server on CentOS/RHEL 5/6/7
    3. What is Chef Automation Tool and It’s Features
    4. Puppet vs. Chef vs. Ansible vs. SaltStack

    Connect Nodes to a Chef Server

    Download the Starter Kit for WorkStation

    Firstly we need to download the Starter Kit for a workstation. In the Starter Kit all the necessary configuration file store such as knife.rb and user.pem file. These configuration files help you to interact with the Chef Server. Simply download the Starter Kit and move it to Chef workstation.

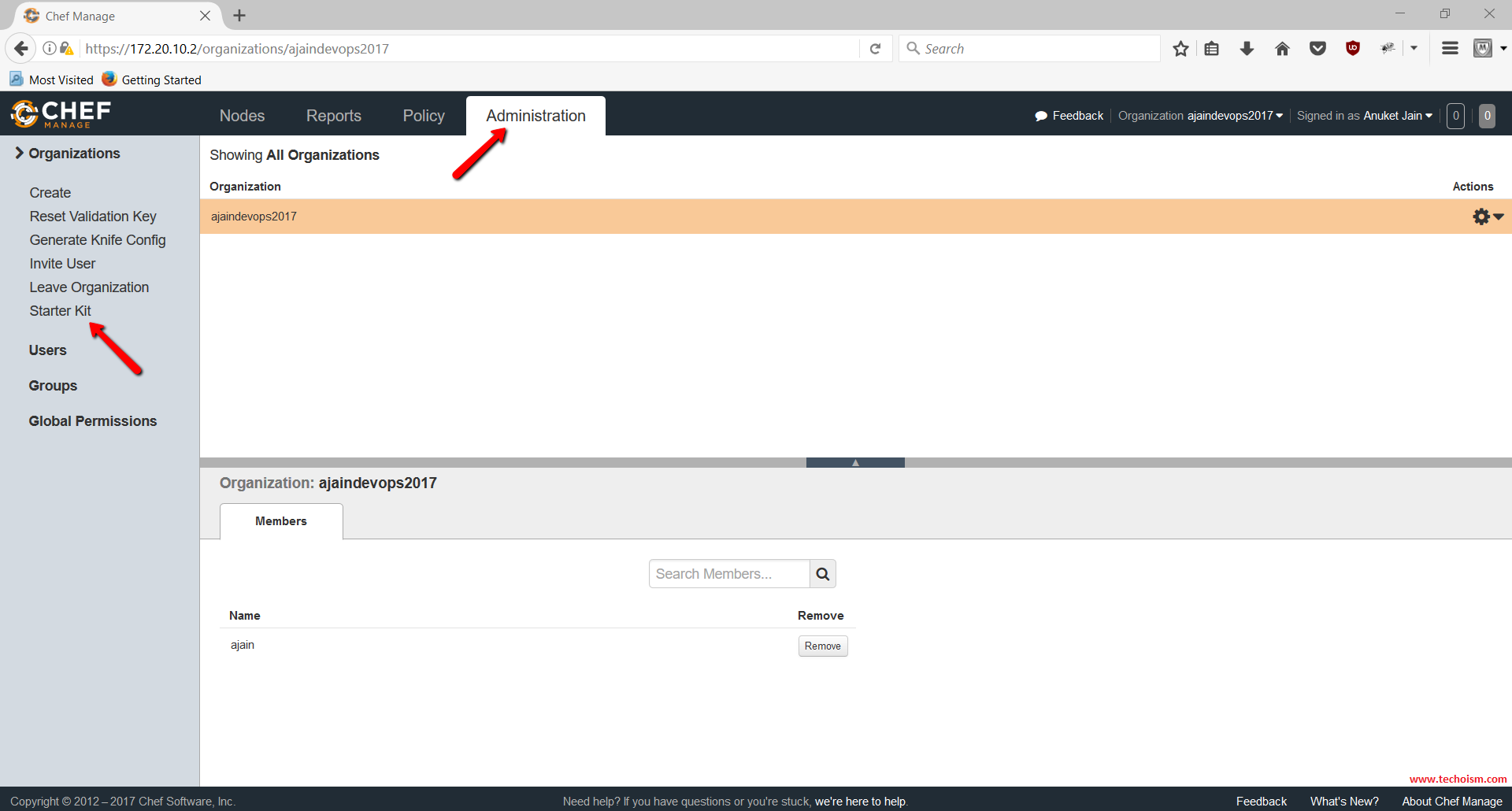

    Choose any of your organization and download the Starter Kit from the Chef Server to our Work Station.

    Starter Kit

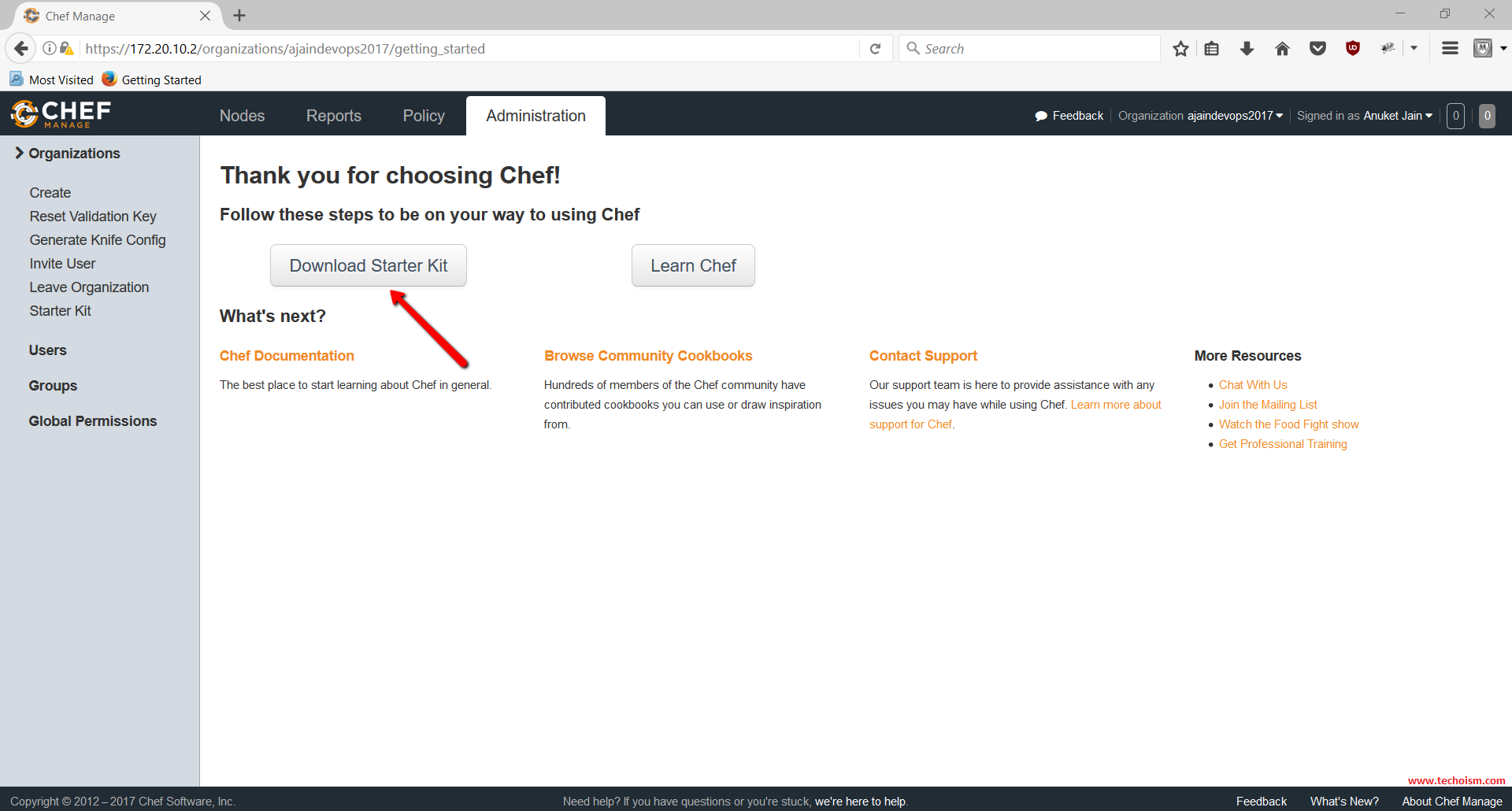

    Download Starter Kit

    After downloading this kit. Move it your Workstation and extract it. This provides you with a default Starter Kit to start up with your Chef server.

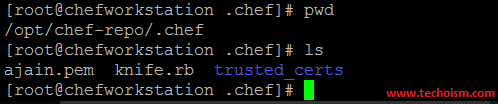

    All the configuration files will store at .chef directory.

    /opt/chef-repo/.chef

    # ls


    Chef Configuration file

    In knife.rb file all the inforation store regarding Chef Server, which help you to connect Chef Server with nodes.

    # cat knife.rb

    # See https://docs.getchef.com/config_rb_knife.html for more information on knife configuration options

    current_dir = File.dirname(__FILE__)
    log_level                :info
    log_location             STDOUT
    node_name                "ajain"
    client_key               "#{current_dir}/ajain.pem"
    chef_server_url          "https://chef.techoism.local/organizations/ajaindevops2017"
    cookbook_path            ["#{current_dir}/../cookbooks"]


    You can also configure knife.rb file using following command:

    # knife configure --initial


    Verify the Connection

    Now run below command to verify the connection.

    # knife client list


    Note: After running above command If you get SSL error as below then you need to fetch the SSL certificate for our Chef server.

    ERROR: SSL Validation failure connecting to host: chef.techoism.local - SSL_connect returned=1 errno=0 state=error: certificate verify failed
    ERROR: Could not establish a secure connection to the server.
    Use `knife ssl check` to troubleshoot your SSL configuration.
    If your Chef Server uses a self-signed certificate, you can use
    `knife ssl fetch` to make knife trust the server's certificates.

    Original Exception: OpenSSL::SSL::SSLError: SSL Error connecting to https://chef.techoism.local/organizations/ajaindevops2017/clients - SSL_connect returned=1 errno=0 state=error: certificate verify failed


    Run below command to fetch the SSL from Chef Server.

    # knife ssl fetch

    WARNING: Certificates from chef.techoism.local will be fetched and placed in your trusted_cert
    directory (/opt/chef-repo/.chef/trusted_certs).

    Knife has no means to verify these are the correct certificates. You should verify the authenticity of these certificates after downloading.

    Adding certificate for chef_techoism_local in /opt/chef-repo/.chef/trusted_certs/chef_techoism_local.crt


    SSL certificate will fetch on /opt/chef-repo/.chef/trusted_certs/ location on the server.

    Install Chef Client on Node

    Run below command to install the Chef Client on the Node.

    # curl -L https://www.opscode.com/chef/install.sh | bash


    Connect Nodes to a Chef Server

    To connect the nodes will Chef Server is very simple. You just need to execute below bootstrape command to connect the node with Chef Server.

    # knife bootstrap Server_IP -x User_Name -P Password --sudo -N Alias_Name


    For example:

    # knife bootstrap 172.20.10.12 -x root -P redhat --sudo -N NodeServer1

    Creating new client for NodeServer1
    Creating new node for NodeServer1
    Connecting to 172.20.10.12
    172.20.10.12 -----> Existing Chef installation detected
    172.20.10.12 Starting the first Chef Client run...
    172.20.10.12 Starting Chef Client, version 13.2.20
    172.20.10.12 resolving cookbooks for run list: []
    172.20.10.12 Synchronizing Cookbooks:
    172.20.10.12 Installing Cookbook Gems:
    172.20.10.12 Compiling Cookbooks...
    172.20.10.12 [2017-08-13T13:38:17+05:30] WARN: Node NodeServer1 has an empty run list.
    172.20.10.12 Converging 0 resources
    172.20.10.12
    172.20.10.12 Running handlers:
    172.20.10.12 Running handlers complete
    172.20.10.12 Chef Client finished, 0/0 resources updated in 04 seconds

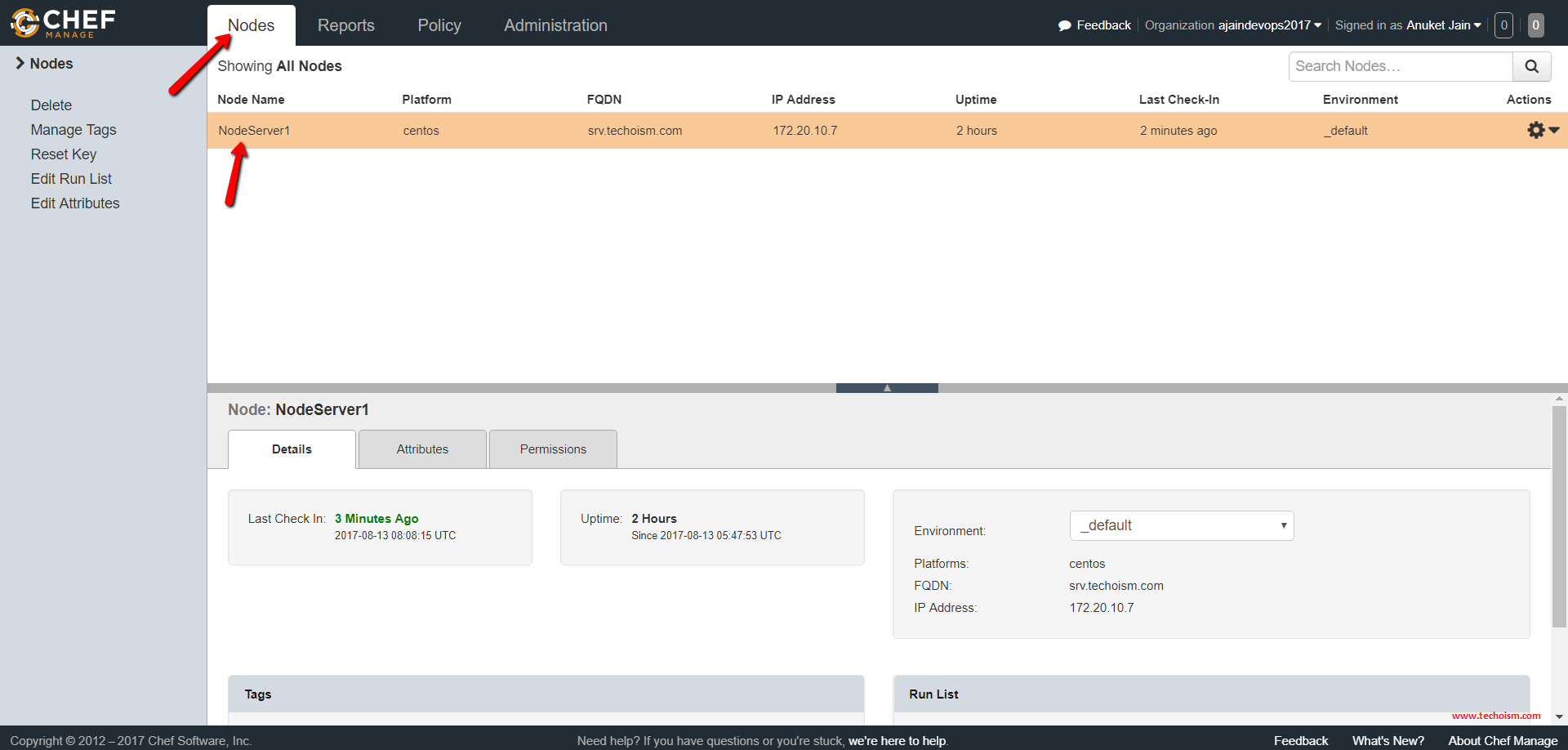

    Also, you can verify in the Chef Server web console.

    Chef Node

    In Next article, we will explain who to create a cookbook and run that cookbook on Chef Node.

    Now you have successfully connected the Node with Chef Server.

    Enjoy it!
